Zone 2 Lighting

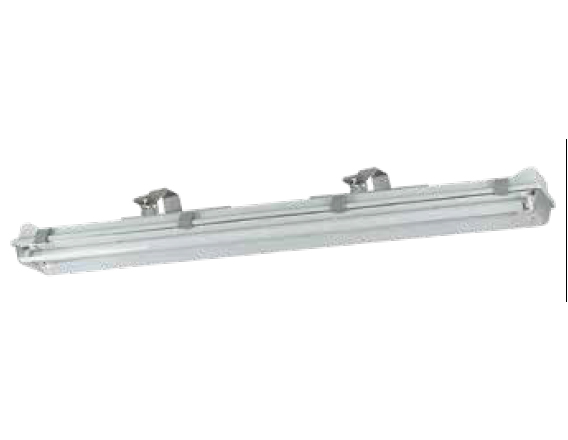

IEP FEAM EVSN Zone 2 Lighting fixtures for fluorescent tube lamps

Installation: hazardous areas – Zone 2 (Gases) – Zone 22 (Dusts)
Classification: Group II – Category 3G 3D

REFERENCE STANDARDS
Directive 94/9/EC (until April 19th, 2016) – Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 3 G Ex nA IIC T6/T5/T4 Gc
II 3 D Ex tc IIIC T85°C/T100°C/T135°C Dc
RULES OF COMPLIANCE: EN 60079-0; EN 60079-15; EN 60079-31
EC Type-Examination Certificate: IMQ 08 ATEX 008X
PROTECTION DEGREE: IP65
AMBIENT TEMPERATURE: -20°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES:
EAC: TC RU C-IT.ГБ08.В.01342 (-40°C÷+60°C)
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315

Mechanical characteristics
Body: Glass fibre reinforced polyester resin
Diffuser: U/V resistant polycarbonate – hinged to body
Safety closing: Stainless steel hooks with safety device
Gaskets: EPDM 60 rubber suitable for high temperatures and resistant to enviroments conditions
Internal reflector: White stove enamelled sheet steel
Cable entry: Complete with 1 PVC cable gland + 1 PVC stopping plug

Electrical characteristics
Power supply: Dual channel electronic ballast 220÷240V AC/DC 50/60Hz (cos ρ ≥ 0,98)
Emergency unit: Emergency unit with autonomy from 120 min. – (inverter) 220÷240V 50/60Hz
Lamp holders: bi-pin G13 cap
Terminals: Suitable up to 6 sq/mm cables

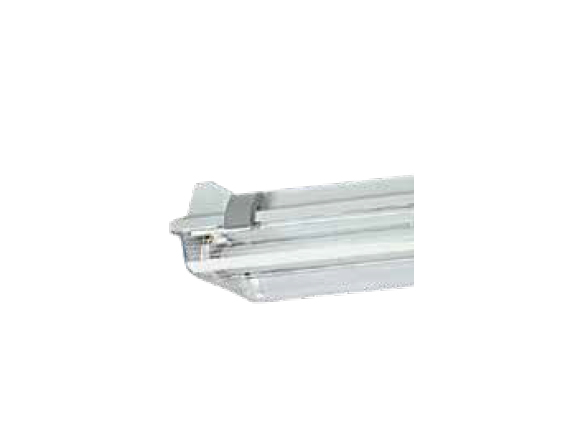

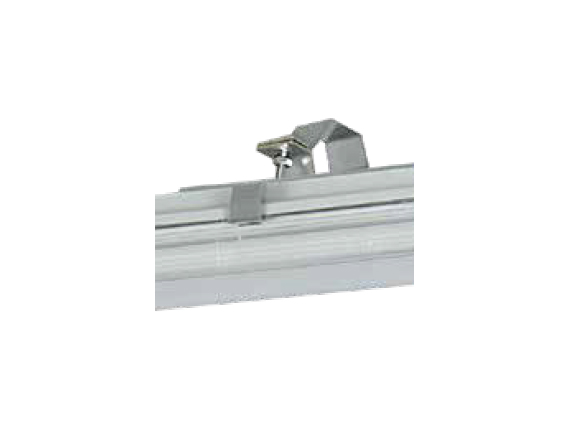

On request accessories:

IEP FEAM SFDN-SFDNX Floodlights for discharge lamps

Installation: hazardous areas – Zone 2 (Gases) – Zone 22 (Dusts)
Classification: Group II – Category 3G 3D

REFERENCE STANDARDS
Directive 94/9/EC (until April 19th, 2016) – Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 3 G Ex nR IIC T3/T2 Gc
II 3 D Ex tc IIIB T200°C/T300°C Dc
RULES OF COMPLIANCE: EN 60079-0 + A11; EN 60079-15; EN 60079-31
EC Type-Examination Certificate: LCIE 15 ATEX 1012X
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -40°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES:
IECEx: IECEx LCIE 15.0020 X
INMETRO: CEPEL 15.2353X
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315

Mechanical characteristics
Body:
Marine grade copper free aluminum (SFDN version)
stainless steel AISI 316L – sp. 1,5mm pickled, polished and brightened (SFDNX version)

Diffuser: Tempered front glass
Support: Steel bracket with rotation-proof system
Reflector: Anodized and polished 99,85 pure aluminum internal optic
Painting: Thermosetting polyester powder resistant to atmospheric agents and corrosion grey RAL 9006 colour
(on request for SFDN version – on request for SFDNX version)
Screws: Stainless steel
Gaskets: Pure silicon heat resistance
Cable entry: ISO-METRIC complete with cable gland
Internal Optic: (S) symmetric optic – (A)asymmetric optic – (C) concentrating beam optic (Internal optical selection for SFDN version only)

Electrical characteristics
Power supply: Conventional ballast 230V – 50Hz (P.F. CORRECTED – cos ρ ≥ 0,95)
Lamp holders: Porcelain E40
Internal wiring: High-temperature resistant silicon rubber insulation cables
Terminals: Suitable up to 4 sq/mm cables

On Request Accessories:

IEP FEAM EWN Zone 2 Lowbay Walkway Lighting fixtures for discharge lamps

Installation: hazardous areas – Zone 2 (Gases) – Zone 22 (Dusts)
Classification: Group II – Category 3G 3D

REFERENCE STANDARDS
Directive 94/9/EC (until April 19th, 2016) – Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 3 G Ex Ex nR IIC T3/T4 Gc
II 3 D Ex tc IIIC T200°C/T135°C Dc
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-15; EN/IEC 60079-31
EC Type-Examination Certificate: IMQ 10 ATEX 032X
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -40°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES:
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315
INMETRO: CEPEL 14.2313X

Mechanical characteristics
Body: Marine grade copper free aluminium (control gear & lamp body)
Globe: High-temperature resistant borosylicate glass
Painting: External epoxy powders grey RAL-9006 colour
Screws: External stainless steel
Gaskets: Silicon rubber

Electrical characteristics
Power supply: Conventional ballast 230v – 50hz (p.f.corrected – cos ρ ≥ 0,95)
Lamp holders: Porcelain E27/E40 size
Internal wiring: High-temperature resistant silicon rubber insulation cables
Terminals: Suitable up to 4 sq/mm cables

On request accessories:
