Starfix Nylbloc Terminals
IEP, a Malaysia-based industrial electrical power products, electrical distribution system and power distribution equipment, provides a variety of solution across all industries for indoor and outdoor application, ranging from extra low voltage, low voltage (LV), medium voltage (6.6KV/11KV/22KV/35KV).

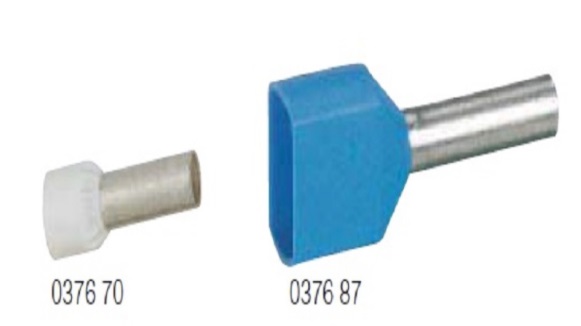

IEP Legrand Starfix® crimping tools and ferrules
For ferrules of 0·5 to 6 mm2
Supplied complete with colour-coded applicators, for dispensing strips
For simultaneously separating and crimping the ferrules
Body: polyetherimide resin
IEP Legrand NylblocTM screw terminal strips
Self-extinguishing to EN 60695-2-11 at 850°
Insulation voltage: 250 V according to EN 60 998-2-1
Use at 400 V integrated in a series of products that
comply with the requirements of EN 60664-1,
pollution degree 2, overload category III
IEP Legrand NylblocTM auto screwless connection terminals
No tool direct connection after simple stripping of copper conductors
Test socket for tester screwdriver or test tip Cat.No 0 394 45 (p. 306) for IP 2X test or Ø4 mm tip on
IEP Legrand Nylbloc auto terminals
Conform to EN 60998-2-2
For rigid cable from 0.75 to 2.5 mm2
Stripping length: 11 mm
Connection by separate crimping blades
Transparent base providing full visibility of the connections
Colour code to identify products
Duplix marking possible on 3.5 and 8-wire terminals
Max. intensity: 24 A
Insulating voltage: 450 V±
