PVC Cable Tray
Swifts® Cable Tray
IEP, a Malaysia-based industrial electrical power products and cable tray distributor, provides a variety of cable management system ranging from wire mesh steel cable tray, PVC trays, perforated cable trays, cable ladders, flexible conduit, conduits, single and trefoil cable cleats, cable module system CMS), etc. Material ranging from PVC, electrozinc plated steel, hot dip galvanized steel (HDG), Stainless Steel 304 (SS304L) and 316 (SS316L), Aluminium, deep galvanized silicon steel, Glass Reinforce Polymer (GRP).
Swifts® PVC Cable Tray
IEP-Legrand’s Swifts PVC cable tray, is the ideal choice for projects in damp and corrosive environments.
Swifts® PVC Cable Tray
IEP-Legrand’s Swifts PVC cable tray does not conduct electricity. Therefore no earthing requirement. The operating temperature range is from -20°C to + 60°C. Conforms to the RoHS Directive.
Features:
• EXCELLENT RESISTANCE
PVC is corrosion-free with excellent resistance to chemical agents and damp environments, giving it a long service life.
• IMPACT RESISTANCE
It has high resistance of up to 20 J, depending on the size.
• NON-FLAMMABLE, SELF-EXTINGUISHING
PVC is flame retardant and has excellent resistance to fire (Class M1).
• EASY TO INSTALL
PVC cable tray is lightweight to handle and transport. It is easy to cut, perforate or join together, and causes little damage to cables or injury to hands.
• A COMPLETE SYSTEM
Available in a standard or reinforced version with a perforated or unperforated base.
• ECO – FRIENDLY
PVC is a 100% recyclable material, both physically and chemically. The Legrand PVC cable tray range complies with the requirements of the RoHS Directive, which stipulates the elimination of several substances that are hazardous to the environment and to health. PVC requires very little energy during its manufacture.
IEP Legrand SWIFTS PVC cable trays can be installed in both commercial and industrial environments:-
Industrial environments:
Chemical or petrochemical sites, paper industries, food processing, etc.
Commercial sector:
Storage areas, car parks, offices, service ducts, etc.
Indoors or outdoors:
Can be installed outdoors as the whole range has UV protection.
A complete system
– 3 depths: 50/75/100 mm
– Width 75 to 600 mm
– Perforated and unperforated, standard and reinforced profiles

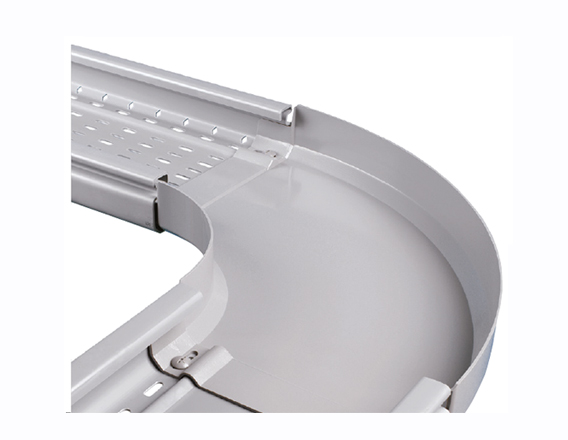

The IEP Legrand Swifts cable tray The thermoformed fittings with integrated couplers can be adapted to each configuration. With a consistent 150 mm radius of curvature, they prevent the cables from being damaged, allowing them to slide through easily. The covers simply clip on. Profiles can be fixed to the wall or suspended from ceilings.
Significant advantages
– Optimised cabling capacity
– Time-saving with clipping of couplers and covers
– 20% more mechanical strength
