Polefix

A stainless steel band and two Pole fixes allow you to mount all types of IEP-Dutchclamp cable clamps (cable cleats), cable blocks or other products to (steel or concrete) poles which may not be drilled.

Enquire Now
FeaturesCatalogues
IEP Dutchclamp Pole Fix for Mounting Cable Blocks & Cable Clamps

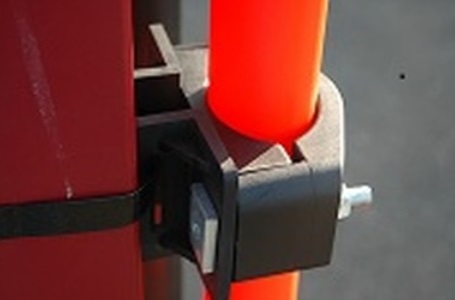

Using a stainless steel strap and two Polefix holders, all types of Dutchclamp cable clamps, cable blocks and other products can be attached to (steel or concrete) poles that may not or cannot be drilled into.
FEATURES
  • Manufactured from polyamide (PA), glass fibre reinforced.
  • Resistant to oils, UV, ozone, salt, moisture, acids and even nuclear radiation.
  • UL94 self-extinguishing, Halogen-free.
  • Temperature range from -40°C to 120°C.
  • Coloured black.

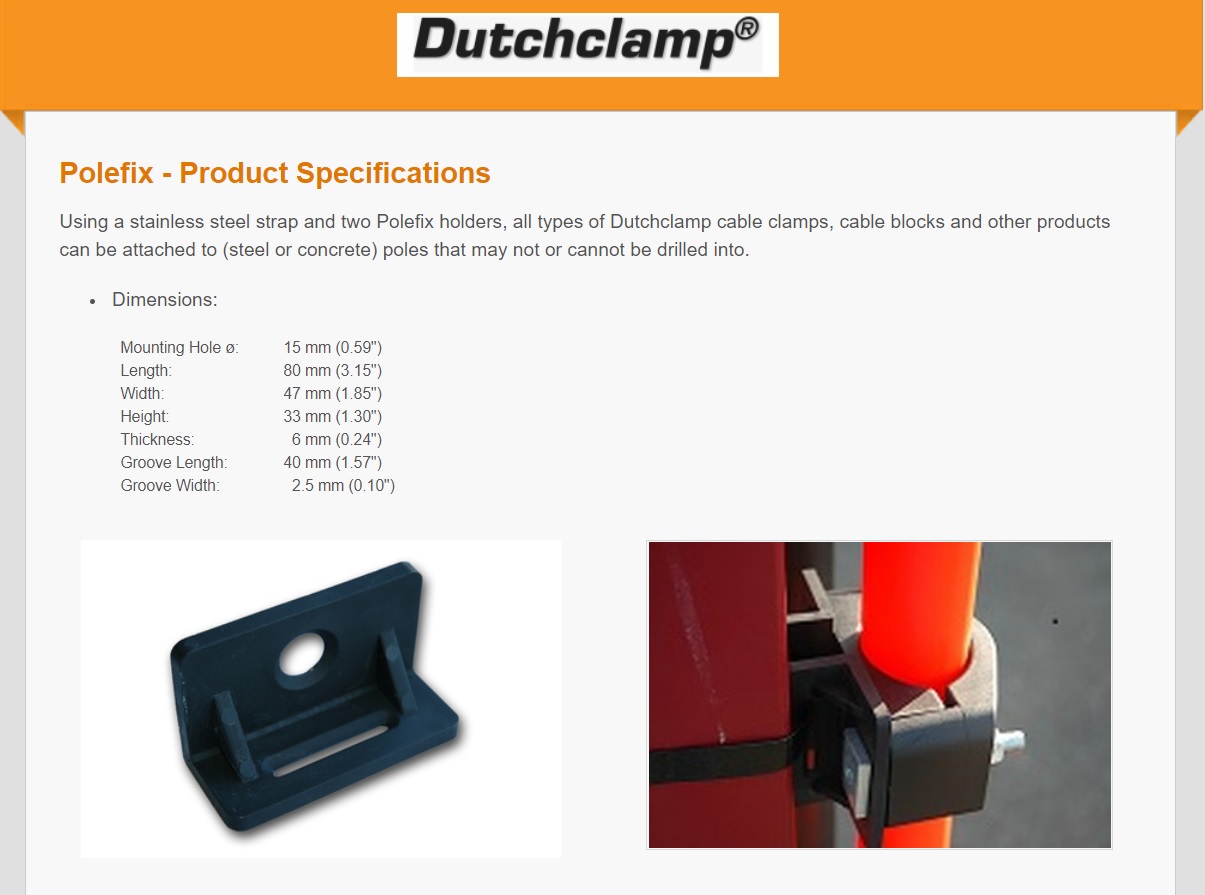

Product Specifications

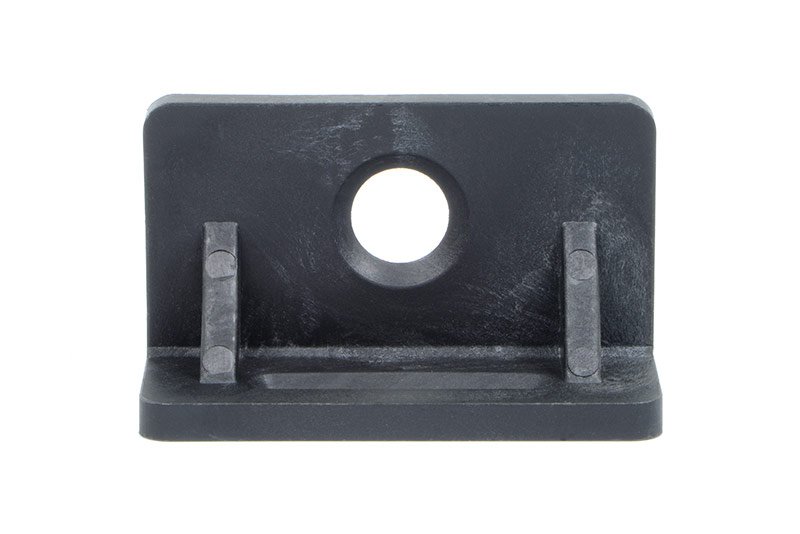

Type Polefix
diameter mounting hole ø 15 mm (0.59″)
Length 80 mm (3.15″)
Width 47 mm (1.85″)
Height 33 mm (1.30″)
Thickness 6 mm (0.24″)
Pole length 40 mm (1.57″)
Pole thickness 2.5 mm (0.10″)
