Optic Fiber Ducting Raceway

Fiber Raceway Cable Tray

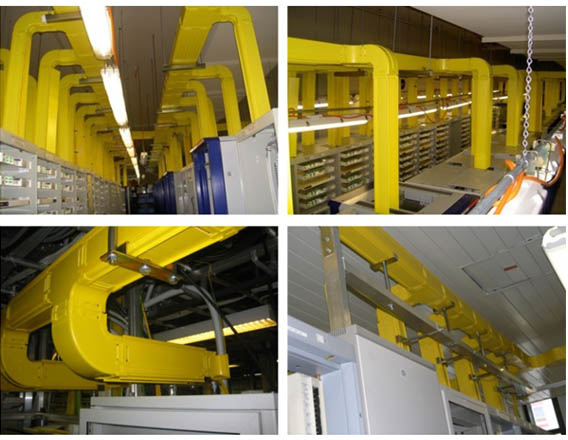

Fiber optic ducting raceway is a unique system for routing and protecting fiber optic cord between termination equipment, patch panels and fiber optic splicing cabinets or frames in telecommunications exchanges, data centres, universities, hospitals, or anywhere fiber optic cabling is present. Easily mounted above equipment racks or below floors, it provides an easily accessible solution to  any situation.



Enquire Now
FeaturesCatalogues

Why use fiber optic ducting-raceway?

Fiber cords are fragile and need to be correctly protected throughout any cabling installation from end to end. Traditional cable routing on open cable trays and ladders may cause damage to the delicate fiber cables.

Fiber cords need to be segregated from all copper services and routed in enclosed duct-raceway, clearly defined by means of a bright distinctive colour. They also need protection against compression, and the minimum bend radius, generally specified as 30mm (1.25″) must not be compromised.

Benefits:-

  1. CABLE MANAGEMENT SYSTEM

With the strong growing demand of fibers, fiber cords need to be segregated from copper services and routed in an enclosed duct raceway system, fulfilling following demands:

  • bright distinctive duct color: Yellow (=standard), orange and black
  • protection against compression
  • protection against bend radius
  • available sizes 50 mm, 100 mm, 220 mm, 300 mm and 600 mm
  1. MEETS FOLLOWING IMPORTANT STANDARDS:
  • Low smoke Zero Halogen, self-extinguishing. Avoiding risk of harming staff and transmission equipment.
  • ISO 9001 Certified Quality Management System by NCS International
  • Fire retardent plastic, Halogen Free, UL94-V-0 (50 mm UL94-V-1) rated
  • ROHS Compliant
  • UL2024A Standard rated
  1. EASY & TIME SAVING INSTALLATION

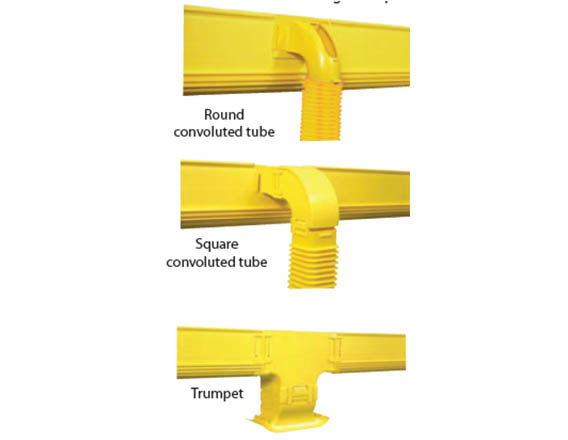

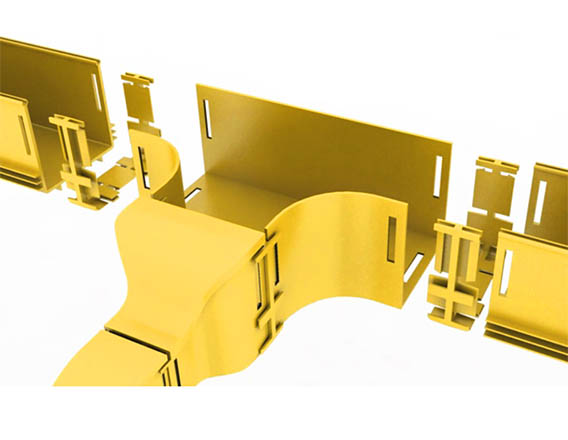

Simply snap together the components and accessories or can be joined with “slotless” joiners, express outlets, break out kits.

  1. ZERO DOWN TIME

Fiber Raceway can easily be changed or extended without the need to remove the existing fiber or shut down.

  1. FULLY RECYCLABLE

The granulate Noryl used for Fiber Raceway is fully recyclable (Cradle to cradle). Very important issue for future datacenters.

  1. 10 YEAR WARRANTY

All products are manufactured to the highest quality standards ISO 9001, complying with the stringent requirements of UL2024A and ROHS, and carry a 10 year warrenty.

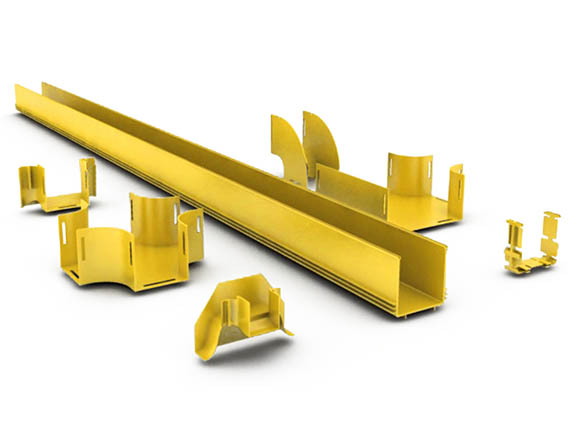

Available in Standard 4 x4”, 8×4” and 12 x 4”  sizes in solid wall or slotted wall for exiting fibers, with the largest range of connecting components and mounting hardware available.  Consult us for more details!
