LV/FO Cable Splice Kit

IEP-DSG-Canusa offers a variety of superior quality Heat & Cold Shrink Products of applied sleeves and shape products to seal and protect wire and cable connections in low-voltage electrical applications.

IEP DSG-CANUSA CRDW-CT Adhesive lined, heat shrink wraparound sleeve that is closed with a flexible stainless-steel locking channel. Used for making in-line Y or H parallel splices on cable up to 1000 V without cutting the main or run cable.

Enquire Now
FeaturesCatalogues

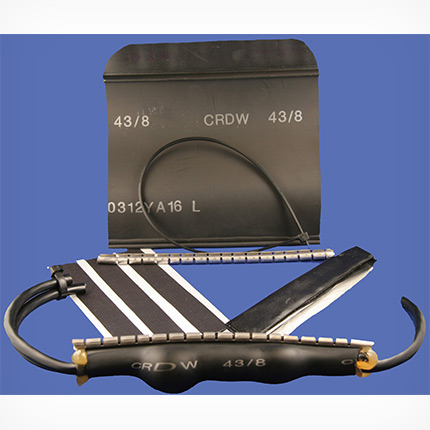

IEP-DSG Canusa CRDW-CT

IEP DSG-Canusa CRDW-CT- 1kV Cable Tap Slice Kit

Adhesive lined, heat shrink wraparound sleeve that is closed with a flexible stainless-steel locking channel. Used for making in-line Y or H parallel splices on cable up to 1000 V without cutting the main or run cable.

Features & Benefits:
  • Quick, simple installation
  • Exceptionally good electrical insulation
  • Good mechanical load-bearing ability
  • No maintenance time necessary
  • Usable immediately
Typical Applications:
  • Cable tap splicing
  • General re-jacketing and sealing of electrical cable

IEP DSG-CANUSA CFSP

A specially designed crosslinked polyolefin tubing system, with meltable liner, providing strength and protection to optical fibre splices.

Features & Benefits:
  • Single fiber and ribbon fiber splice protector available
  • Single holed (preshrunk) ends eliminate improper fiber threading
  • Smooth, de-burred stainless steel reinforcing member ends decrease the risk of fiber damage during installation
  • Extended liner length prevents contact between the fiber and the backbone
  • Clear sleeve design permits easy centering of splice before heating
  • Continuous operating temperature: -40°C to 70°C
  • Shrink temperature: 90°C
Typical Applications:
  • Protection of fusion splices in optical networks

IEP DSG-CANUSA DERAY® SpliceMelt

Adhesive Lined Cross -linked Polyolefin
Adhesive lined heat shrink specifically designed to insulate, seal and protect in-line splices in automotive wire harnesses and electronic assemblies.

  • 1 shrink ratio to fit varying splice configurations and substrate profiles
  • Seals and protects against water, moisture and chemical ingress
  • Adhesive bonds readily to PVC, XLPE and PP-EPDM cable jackets
  • Shrinks rapidly for quick installation
  • Use with DERAY® FST shrink ovens for best performance
  • Continuous operating temperature: -55°C to 125°C
  • Shrink temperature: 125°C
Standards:

• Approved to all major Automotive OEM splice sealing specifications

Typical Applications:
  • Environmental sealing of in-line splices
  • Sealing and strain relief of connectors and terminals
  • Abrasion protection and electrical insulation of automotive wiring harness splices

IEP DSG-CANUSA UF Splice Kit

Underground Feeder (UF) Cable Splice Kits
UF Cable Splice Kits are used to provide a reliable yet simple method of connecting 600 V rated UF cables rangi ng from #14/2 with ground up to #8/3 with ground. Heavy wall, adhesive lined heat shrink tubing provides an effective, moisture proof seal that is suitable for submersible and direct burial splice applications.

Features & Benefits:
  • Outer tubing sleeve provides excellent abrasion resistance
  • Accommodates #14 to #8 AWG UF type cables
  • Heat activated seal ensures maximum protection against moisture ingress
  • Quick and easy installation
  • Rated for 600 V
Standards:

• UL 486D listed for direct burial applications

Typical Applications:
  • Irrigation systems
  • Splicing of underground feeder cables
