Utility Locating Equipment
Diagnostics, Inspection & Locating Devices Supplier In Malaysia
IEP-Emerson RIDGID’s Diagnostics offer products that set the benchmark for ruggedness and durability with the technology needed to finish a job. The RIDGID locating receivers give users an accurate and instantly intuitive way to locate sondes and trace utility lines. Powered by an omnidirectional antenna system and real-time signal processing, RIDGID receivers provide an easy to use visual mapping display that allows you to locate with confidence. Use with a SeeSnake® camera equipped with a sonde transmitter to locate the camera head during an inspection, or use with a line transmitter to find buried utilities.
IEP-Emerson RIDGID’s Locating Equipment

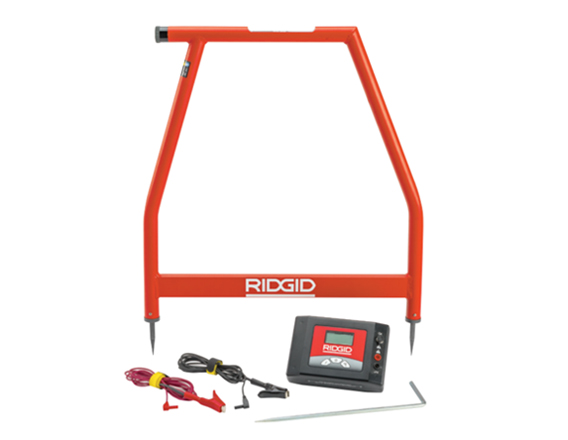

RIDGID® A-Frame Fault Locator
The RIDGID A-Frame Fault Locator is a purpose-built system to simplify the location of ground faults in direct buried insulated wire.
FEATURES
• Purpose-built directional fault finder.
• Locates insulation faults up to 2 megohms.
• Reference readout to determine fault location.
• Durable, lightweight powder-coated aluminum frame.
• Weatherproof membrane buttons.
• Made in the U.S.A..
FT-103 Transmitter
Specifications:
• Operating Frequencies – Direct Fault Finding: 797 Hz – “dFF” displayed
Path Locating: 128 Hz, 1 kHz, 8 kHz, 33 kHz, 93 kHz
Direct Connect: 128 Hz, 1 kHz, 8 kHz, 33 kHz, 93 kHz
Inductive Clamp: 8 kHz, 33 kHz, 93 kHz
Broadcast Inductive: 33 kHz, 93 kHz
• Load Range – 5 Ω to 2M Ω
• Output Power – Up to 3 Watts (low, medium and high settings)
• Output Voltage – 5 Volts – 600 Volts
• Power Supply – 8 × C-cell batteries (included)
• Dimensions (LxWxH) – 8.5″ × 5.8″ × 2.5″.
FR-30 A-Frame Receiver
Specifications:
• Fault Finding Depth – Up to 20′ (depending on conditions)
• Fault Finding Length – Up to 3 miles (depending on conditions)
• Display – Black and White LCD
• Power Supply – 6 × AA batteries
• Dimensions (LxWxH) – 30.3″ × 30.4″ × 1.5″.
Automatic Depth
Depth is automatically calculated and displayed when over the target.
Advantage:
• Unlike conventional locators, NaviTrack II and NaviTrack Scout have multi-directional antennas.
• These antennas, combined with sophisticated software, make locating fast, easy and accurate.
• Full Lifetime Warranty
