Exd Stainless Steel Enclosure
IEP, a Malaysia-based industrial electrical power products, provides a variety of explosion proof electrical equipments ranging from Exd, Exde, Exe, Exn, Ex ia Ex p, Ex q, Ex m, etc.
IEP, the well known Explosion Proof terminal box suppliers and Explosion Proof Box or Enclosures vendor in Malaysia with best knowledge in certification requirement and meeting the customization requirement for different applications.

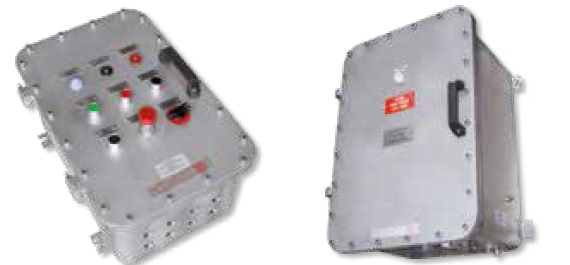

IEP FEAM EJB INX SS Enclosures
Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D
EXECUTION:
( II 2 G) Ex db IIA or IIB+H2 T6…T3
( II 2 G) Ex db [ia/ib] IIA or IIB or IIC Ga+H2 T6…T3
( II 2 D) Ex tb IIIC T85°C…T200°C
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-11; EN/IEC 60079-31
EC Type-Examination Certificate: INERIS 13 ATEX 0022X
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -60°C ÷ + 80°C
OTHER AVAILABLE CERTIFICATES:
Component: INERIS 13 ATEX 9019U
IECEx: IECEx INE 13_0070X
INMETRO: CEPEL 12.2139
EAC: TC RU C-IT.ГБ08.В.01499
RINA: ELE18111CS_012
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03518.315
NEC 505: UL 20141204-E302348 – Type rating NEMA 1, 12, 4 and 4X
Mechanical characteristics
Body/cover: Stainless steel AISI-316L
Screws: Stainless steel AISI-316L
Internal mounting plate: Stainless steel AISI-316L
Fixing: Stainless steel fixing lugs, AISi-316L steel stirrups sp. 10mm (EJB71/73-EJB91/93)
Hinges: welded on cover and body)
Opening handle : insulating material fixed on cover by stainless steel screws
On Request Accessories:
- External epoxy painting (any colours)
- Internal anticondensate painting orange RAL-2004
- O-Ring gaskets on cover
- Glass windows on cover
- Drain and breather valves
