Exd Sockets & Plugs
IEP, a Malaysia-based industrial electrical power products, provides a variety of explosion proof electrical equipments ranging from Exd, Exde, Exe, Exn, Ex ia Ex p, Ex q, Ex m, etc.
IEP, main plug socket suppliers Malaysia, supply all kind of severe power and communication plug and socket inclusive explosion proof plug and socket, with or without disconnect switch, multi poles, multi contacts, etc.

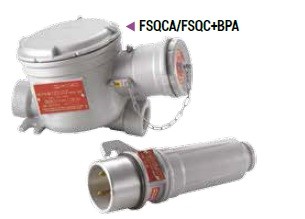

IEP FAEM CPSC / CPH FSQCA-FSQC / BPA-BP Interlocked switch explosion proof plug and socket
Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 /22 (Dusts)
Classification: Group II – Category 2G 2D
REFERENCE STANDARDS
Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 2 G Ex d IIC T6
II 2 D Ex tD A21 T85°C
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 61241-0; EN/IEC 61241-0
EC Type-Examination Certificate:
IMQ 08 ATEX 016
IMQ 09 ATEX 015 (125A Sockets and plugs)
PROTECTION DEGREE: IP66/67
AMBIENT TEMPERATURE: -20°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES:
INMETRO: CEPEL 14.2323X
EAC: TC RU C-IT.ГБ08.В.01323 (-60°C ÷ +60°C)
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03520.315
Mechanical characteristics
Body: Marine grade copper free aluminium light alloy
Cover Marine grade copper free aluminium light alloy
Screws: Stainless steel
Pins: Brass
On request accessories:
- External epoxy painting with colour on request
- Cable entries with different thread from standard
IEP FEAM CPSCP – FSQCP / BP Intelocked panel switch explosion proof plug and socket
Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 /22 (Dusts)
Classification: Group II – Category 2G 2D
REFERENCE STANDARDS
Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 2 G Ex d IIC T6
II 2 D Ex tD A21 T85°C
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 61241-0; EN/IEC 61241-0
EC Type-Examination Certificate: IMQ 09 ATEX 015
PROTECTION DEGREE: IP66/67
AMBIENT TEMPERATURE: -20°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES:
EAC: TC RU C-IT.ГБ08.В.01323 (-60°C ÷ +60°C)
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03520.315
Mechanical characteristics
Body: Marine grade copper free aluminium light alloy
Cover: Marine grade copper free aluminium light alloy
Screws: Stainless steel
Pins: Brass
On request accessories:
- External epoxy painting with colour on request
- Cable entries with different thread from standard
