Exd Panel or DB
IEP, a Malaysia-based industrial electrical power products, provides a variety of explosion proof electrical equipments ranging from Exd, Exde, Exe, Exn, Ex ia Ex p, Ex q, Ex m, etc.

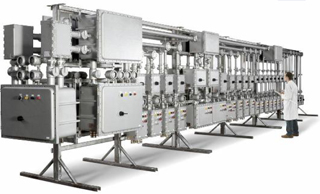

IEP FEAM Explosion proof SWITCHRACKS or explosion proof distribution board
Custom designed, switchracks, panel boards, motor starters
Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 /22 (Dusts)
Classification: Group II – Category 2G 2D
Description:
“SWITCH-RACK” or explosion proof distribution board is a word usually adopted to indicate an ensemble of control units, signaling units, motor starters, switching units, and so on.
Switch-racks or explosion proof distribution board are mechanically assembled on robust frame with various fixing solutions (ground, wall, etc.), electrically wired up on purpose.
BARTEC-FEAM since over 50 years, designs and manufacturers switch-racks according to its own diagram or according to customer’s specifications, in full compliance with European CENELEC standards.
REFERENCE STANDARDS: Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION: ( II 2 G) Ex db IIB+H2 T6…T3; ( II 2 G) Ex db [ia/ib] IIB+H2 T6…T3; ( II 2 D) Ex tb IIIC T85°C…T150°C; II 2 G Ex d IIC T6…T3; II 2(1) GD Ex d [ia/ib IIA or IIB or IIC Ga] IIC T6…T3; II 2 D Ex tb IIIC T85°C…T200°C; II 2 D Ex tb [ia Da/ib] IIIC T85°C; II 2 G Ex d e ia/ib ia mb IIC T6, T5 or T4 Gb; II 2 D Ex tb IIIC T85°C or T100°C Db
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-11; EN/IEC 60079-31
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -60°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES: IECEx; INMETRO; EAC; RINA; RUSSIAN MARINE CERTIFICATE (RMRS); UL NEC 505; NEC – NEMA 4, 7, 9
INSTALLATION
Class I – Groups B, C, e D
Class II – Groups E, F, e G
Class III
PROTECTION: 4, 7 BCD, 9 EFG
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -20°C ÷ +40°C
CERTIFICATION AND COMPLIANCES: UL Standard 1203 – 4° Ed. (15 Sett. 2006); Explosion-Proof / Dust-Ignition-Proof; Electrical Equipment for Use in Hazardous (Classified) Locations
Mechanical characteristics
Boxes: Marine grade copper free aluminum – stainless steel AISI 316L
Painting: External epoxy powders grey RAL-9006 colour (standard)
Screws: External stainless steel
Gaskets: Silicon rubber
Pipes and fittings: Galvanized steel (standard) – stainless steel (optional)
Supporting rack: Hot dip galvanized steel – stainless steel
On request accessories:
- Stainless steel pipes and fittings
- Galvanized steel epoxy painted supporting rack
- Stainless steel supporting rack
- Internal anticondensate painting orange RAL-2004
- External colours different from standard
