Exd Junction & Pulling Box

IEP, a Malaysia-based industrial electrical power products, provides a variety of explosion proof electrical equipments ranging from Exd, Exde, Exe, Exn, Ex ia Ex p, Ex q, Ex m, etc.

Enquire Now
FeaturesCatalogues

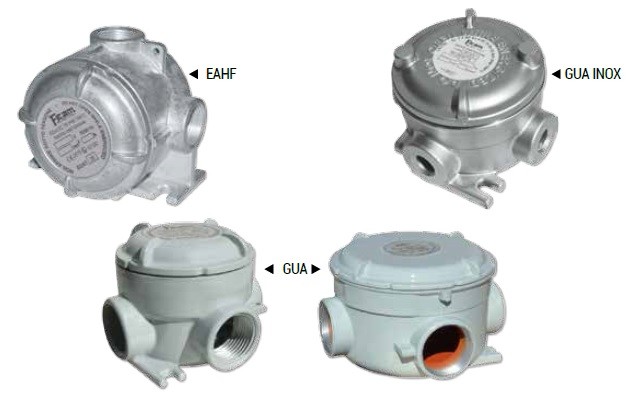

IEP FEAM GUA – EAHF Junction and pulling boxes

Installation: hazardous areas: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D

REFERENCE STANDARDS: Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION: II 2 G Ex d IIC T6…T3 Gb; II 2 G Ex e IIC T6…T3 Gb; II 2 D Ex tb IIIC T85°C…T200°C Db
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7; EN/IEC 60079-31
EC Type-Examination Certificate: INERIS 03 ATEX 0048X
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -60°C ÷ +130°C
OTHER AVAILABLE CERTIFICATES: Component: INERIS 10 ATEX 9005U; IECEx: IECEx INE 12.0021X; Component: IECEx INE 12.0023U; INMETRO: CEPEL 12.2193; Component INMETRO: CEPEL 12.2191U; EAC: TC RU C-IT.ГБ08.В.01499; RUSSIAN MARINE CERTIFICATE (RMRS): 13.03518.315; UL NEC-505: 20131030-E365676

Mechanical characteristics
Body: Marine grade copper free aluminum – stainless steel AISI316L (size 17/27/37 only)
Cover: Marine grade copper free aluminum – stainless steel AISI316L (size 17/27/37 only)
Screws: External stainless steel
Gasket: O-Ring sealing NBR

On Request Accessories:

  • External epoxy painting with colour on request
  • Internal anti condensate painting orange RAL-2004
