Exd Emergency Exit Light
IEP, a Malaysia-based industrial electrical power products, provides a variety of explosion proof electrical equipments ranging from Exd, Exde, Exe, Exn, Ex ia Ex p, Ex q, Ex m, etc.
IEP FEAM Explosion Proof EXL EXIT EMRGENCY Lighting fixtures for fluorescent tube lamps.
Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D

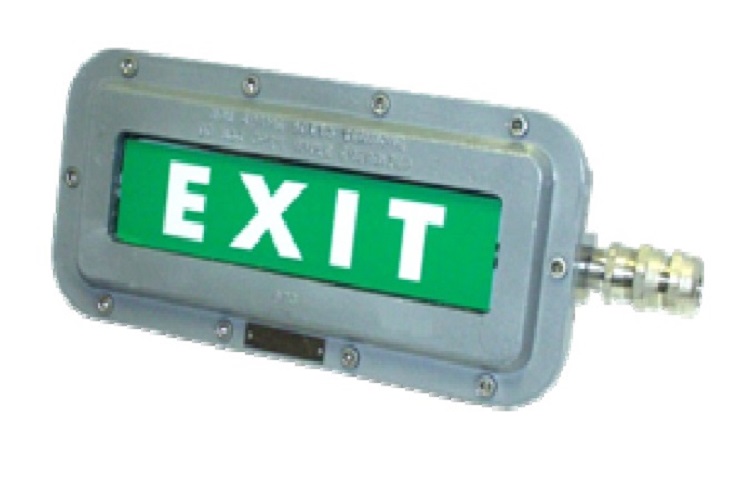

Exd IIB T6 IP66 Explosion Proof Emergency Exit Light with “EXIT” or “KELUAR” laminate sign.
REFERENCE STANDARDS: Directive 94/9/EC (until April 19th, 2016) – Directive 2014/34/EU (from April 20th, 2016)
EXECUTION: II 2 G Ex d IIB+H2 T6 / T5 Gb; II 2 D Ex tb IIIC T85°C / T100°C Db
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-31
EC Type-Examination Certificate: INERIS 15 ATEX 0024X
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -60°C ÷ +80°C
OTHER AVAILABLE CERTIFICATES IECEx: IECEx INE 15_0030X; INMETRO: CEPEL 15.2385X; EAC: TC RU C-IT.ГБ08.В.01342 (-60°C÷+60°C); RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315
Mechanical characteristics
Body: Marine Grade Copper Free Aluminium
Diffuser: High-temperature resistant borosylicate glass
Painting: External epoxy powders grey RAL-9006 colour
Screws: External stainless steel
Reflectors: White stove enamelled sheet steel
Cable entry: 3/4” NPT size threaded c/w cable gland
Electrical characteristics
Power supply (fluo): Electronic ballast 230V/240V 50/60Hz (cos ρ ≥ 0,98)
Internal wiring: High-temperature resistant silicon rubber insulation cables
Terminals: Suitable up to 4sq/mm cables
Emergency unit: Emergency unit for maintained and not maintained (see technical data table)
Functional characteristics
EXL08 (Network only): 8W fluorescent lamp and electronic ballast 230V/240V 50/60Hz
EXL08ESA-3 (Always On – Maintained): 8W fluorescent lamp and electronic ballast 230V/240V AC
EXL08E-3 (Emergency only – Not Maintained): 8W fluorescent lamp and electronic ballast 230V/240V AC
On request accessories:
- External painting colour on request
- Electronic ballast with voltage supply different than standard
- Threaded cable entry different than standard
- Self-adhesive green label with EXIT sign (language on request)
