Ex eq Floodlight
IEP, a Malaysia-based industrial electrical power products, provides a variety of explosion proof electrical equipments ranging from Exd, Exde, Exe, Exn, Ex ia Ex p, Ex q, Ex m, etc.

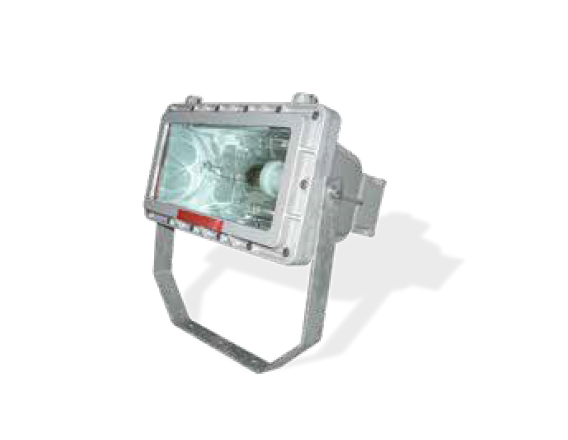

IEP FEAM SFD-SFDE Floodlights for halogen and discharge lamps
Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D
REFERENCE STANDARDS: Directive 94/9/EC (until April 19th, 2016) – Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 2 G Ex d IIB + H2 T3/T2 or II 2 G Ex de IIB + H2 T3/T2;
II 2 D Ex tb IIIC T200°C…T240°C
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7; EN/IEC 60079-31
EC Type-Examination Certificate: INERIS 01 ATEX 0018
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -20°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES:
IECEx: IECEx INE 15.0003X;
INMETRO: CEPEL 15.2363X; EAC:
TC RU C-IT.ГБ08.В.01342 (-60°C÷+60°C);
RINA: ELE18111CS_014;
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315
Mechanical characteristics
Body: Marine Grade Copper Free Aluminium
Diffuser: Tempered Front Glass
Support: Adjustable type hot dip galvanized steel
Reflector: Internal polished aluminium
Painting: External epoxy powders grey RAL-9006 COLOUR
Screws: External stainless steel
Gaskets: Silicon rubber
Cable entry: ISO-M20 / 3/4″ NPT
Electrical characteristics
Power supply: Conventional ballast 230v – 50hz (p.f.corrected – cos ρ ≥ 0,95)
Lamp holders: Porcelain e40 size
Internal wiring: High-temperature resistant silicon rubber insulation cables
Terminals: Suitable up to 4sq/mm cables
On request accessories:
- External painting colour on request
- Control gear with voltage supply different than standard
- Threaded cable entry different than standard
IEP FEAM RCDE Floodlights for incandescent and discharge lamps
Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D
REFERENCE STANDARDS: Directive 94/9/EC (until April 19th, 2016) – Directive 2014/34/EU (from April 20th, 2016)
EXECUTION:
II 2 GD EEx d IIC T4 or T3 or T2 T135°C or T160°C or T200°C or T230°C
RULES OF COMPLIANCE: EN 50014 + A1 and A2 – EN 50018 – EN 50281-1-1 + A1
EC Type-Examination Certificate: INERIS 03 ATEX 0004X
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -20°C ÷ +52°C
OTHER AVAILABLE CERTIFICATES:
EAC: TC RU C-IT.ГБ08.В.01342 (-60°C÷+60°C);
RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315
Mechanical characteristics
Body: Marine grade copper free aluminium
Diffuser: Tempered front glass
Support: Adjustable type hot dip galvanized steel
Reflector: Internal polished aluminium
Painting: External epoxy powders grey RAL-9006 colour
Screws: External stainless steel
Gaskets: Silicon rubber
Cable entry: 3/4″ NPT size threaded
Electrical characteristics
Power supply: Conventional ballast 230V – 50Hz (p.f.corrected – cos ρ ≥ 0,95)
Lamp holders: Porcelain E40 size
Internal wiring: High-temperature resistant silicon rubber insulation cables
Terminals: Suitable up to 4mm/sq cables
On request accessories:
- External painting colour on request
- Control gear with voltage supply different than standard
- Threaded cable entry different than standard
