Ex d/deq/ed/de fluorescent Lights

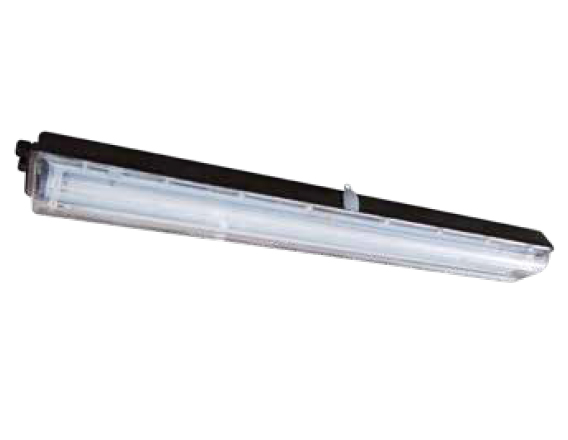

IEP FEAM AVC Increased safety lighting fixtures for bi-pin fluorescent lamps

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D

REFERENCE STANDARDS: Directive 94/9/EC (until April 19th, 2016) – Directive 2014/34/EU (from April 20th, 2016)
EXECUTION: II 2 G Ex d e q IIC T4 Gb; II 2 D Ex tb IIIC T80°C Db; RULES OF COMPLIANCE EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-5; EN/IEC 60079-7; EN/IEC 60079-31; EC Type-Examination Certificate LCIE 12 ATEX 3050X
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -20°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES: IECEx: IECEx LCIE 12.0019X; INMETRO: CEPEL 15.2405X; EAC: TC RU C-IT.ГБ08.В.01342 (-40°C÷+60°C); RUSSIAN MARINE CERTIFICATE (RMRS): 13.03516.315

Mechanical characteristics
Body: Glass fibre reinforced polyester resin self-extinguishing acc. to UL94
Diffuser: U/V resistant polycarbonate – hinged to body

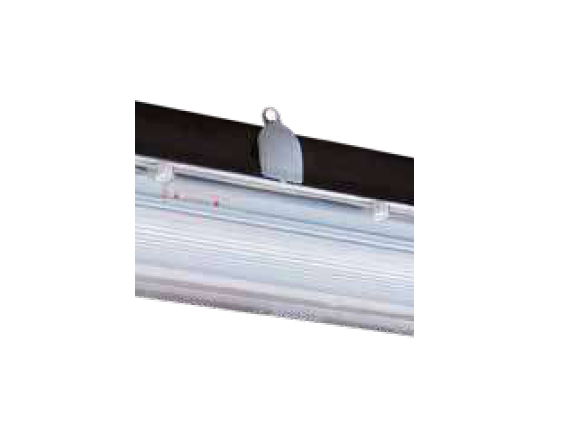

Safety: Closing operated by hexagonal key
Gaskets: EPDM 60 rubber suitable for high temperatures and resistant to environments conditions
Internal: reflector white stove enameled sheet aluminum

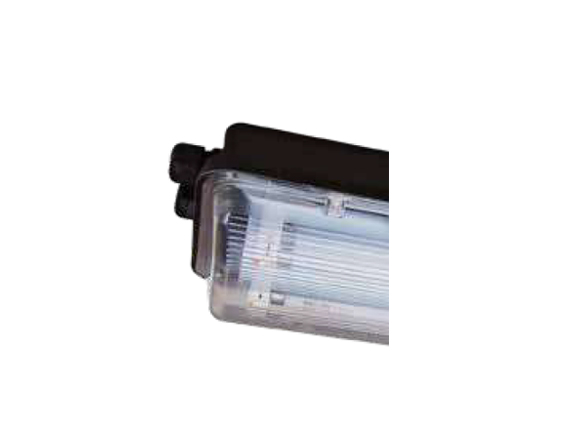

Cable entry: 1 PCE M25 cable gland and 3 M25 plugs

Electrical characteristics
Power supply: Electronic ballast 96…254V AC 50/60Hz (cos ρ ≥ 0,95) / 96 130V DC
Lamp holders: Bi-pin G13 cap
Internal wiring: High-temperature resistant silicon rubber insulation cables
Terminals: Suitable up to 4 sq/mm cables
Safety feature: With protections against over charge and over discharge

On request accessories:

IEP FEAM EVFG Lighting fixtures for fluorescent tube lamps

Installation: hazardous areas – Zone 1 / 2 (Gases) – Zone 21 / 22 (Dusts)
Classification: Group II – Category 2G 2D

REFERENCE STANDARDS: Directive 94/9/EC (until April 19th, 2016) and Directive 2014/34/EU (from April 20th, 2016)
EXECUTION: II 2 G Ex d IIC T6 Gb; II 2 G Ex de IIC T6 Gb; II 2 D Ex tb IIIC T85°C Db
RULES OF COMPLIANCE: EN/IEC 60079-0; EN/IEC 60079-1; EN/IEC 60079-7; EN/IEC 60079-31;
EC Type-Examination Certificate: INERIS 12 ATEX 023X
PROTECTION DEGREE: IP66
AMBIENT TEMPERATURE: -20°C ÷ +60°C
OTHER AVAILABLE CERTIFICATES: IECEx: IECEx INE 13.0055X; INMETRO: CEPEL 13.2291X; EAC: TC-RU C-IT.Г Ъ08.B.01342 (-45°C ÷ +60°C)

Mechanical characteristics
Body: Marine grade copper free aluminium
Tubes: High-temperature resistant borosylicate glass tube
Painting: External epoxy powders grey ral-9006 colour
Screws: External stainless steel
Gaskets: Silicon rubber O-Ring
Reflectors: White stove enamelled sheet steel
Cable entry: 3/4” NPT size threaded

Electrical characteristics for fluorescent tube lamps
Power Supply: Elettronic ballast 110÷260Vac/dc (P.F.Corrected – Cos Ρ ≥ 0,98)
Lamp holders: Bi-Pin G13 Cap
Internal Wiring: 105° C resistant silicon rubber insulation cables
Terminals: Suitable up to 4sq/mm cables
Emergency Unit: Emergency unit composed of inverter charger and Ni-Cd battery pack 4A/h 4.8v. autonomy 120min. LED power-on indicating lamp provided – (inverter) 220÷240V 50/60Hz

On Request Accessories:
