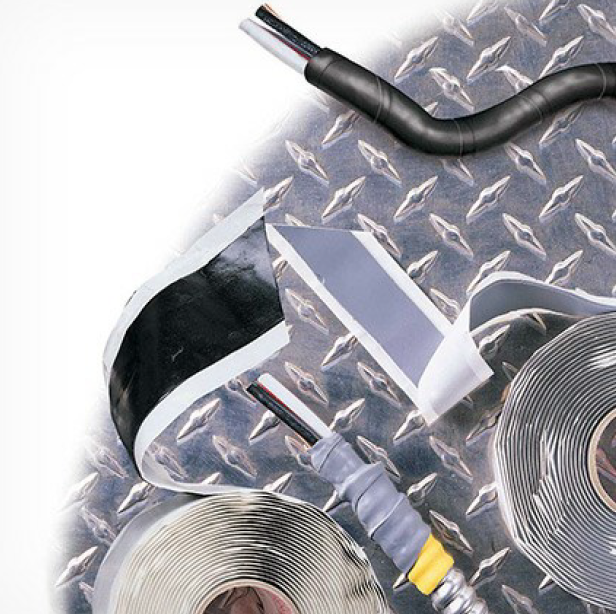

Electrical Insulation Tape

IEP DSG-Canusa DV Tape

IEP DSG-Canus Adhesive Lined Cross-linked Polyolefin Tapea

Adhesive lined, heat shrink duct and vacuum tape specifically designed for sealing joints on spiral, flexible or flat oval ducts used in heating, ventilating, air conditioning and exhaust recovery systems

Features & Benefits:

• 1.1:1 shrink ratio
• Eliminates air leakage in vacuum and ventilation systems
• Seals against moisture ingress and other contaminants
• Powerful adhesive, bonds to galvanized steel, aluminum and stainless steel
• Effective, reproduceable seal allows for resistance to bending, vibrations and other mechanical stresses over a wide range of temperatures
• Application procedure is quick, simple and clean
• Operating temperature range: -25°C to 45°C
• Shrink temperature: 120°C

Typical Application:

• Sealing HVAC duct systems

IEP DSG-Canusa CTSB-2/CTSG-1

IEP DSG-Canusa Tape Sealant
IEP DSG-Canusa CTSB-2: Specially designed, rubber based, black sealant tape for use with Heat Shrink Tubing
IEP DSG-Canusa CTSG-1: Cross-linked, grey butyl tape suitable for continuous high temperature applications

Adhesive lined, heat shrink wraparound sleeve that is closed with a flexible stainless-steel locking channel. Used for general re-jacketing and sealing applications, protection of damaged cable or repair of cable joints. Installs easily in splice applications that are longer in length

Features & Benefits:

IEP DSG-CANUSA CTSB-2

• Excellent adhesion to PVC, PE and steel
• Softens to fill voids
• Remains flexible over time
• Non-conductive
• Superior waterproof seal when used with other DSG-Canusa products
• Continuous operating temperature: -30°C to 85°C

IEP DSG-CANUSA CTSG-1

• Protects sharp edges and smooths out transitions
• Environmentally seals areas and tubing
• Non-conductive
• Excellent high temperature performance
• Resistant to common fluids and solvents
• High dielectric strength (310 V/mil)
• Continuous operating temperature: -30°C to 105°C

Typical Applications

• Insulating and sealing electrical connections
• Padding over irregular surfaces
