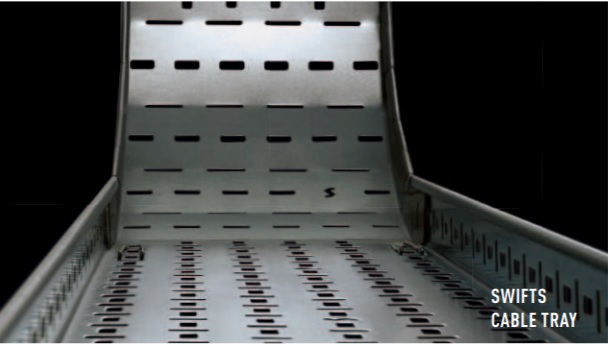

Cable Tray HDG-SS
The distinctive slot pattern on IEP-Legrand’s Swifts cable tray provides installers with total flexibility. Available in four types, this strong, durable system has been designed with fast-fit features. Each system is supported by a fully integrated range of time saving fixings and fittings that make it quick and easy to install, both internally and externally.
IEP-Legrand’s Swifts Cable Tray is used to guide and support insulated cables used for power distribution, control, and communication it is an effective way to manage cable in commercial and industrial construction.
The perforated design allows installers the ultimate flexibility and quick installation, allowing cables to be pulled through the slots but also allowing for air circulation, water drainage.
Product Range
SS –LIGHT DUTY
Tray depth:
- 12mm (for 50 – 225mm widths)
- 18mm (for 300mm width and above)
Finishes:
G (hot dip galvanised)/ PG (pre-galvanised)/ S (stainless steel)
MRF – MEDIUM DUTY (Medium duty return flange tray)
Tray depth: 25mm
Finishes:
G (hot dip galvanised)/ D (deep galvanised)/ PG (pre-galvanised)/ S (stainless steel)/ E (powder coated)
SRF – HEAVY DUTY (Heavy duty return flange tray)
Tray depth: 50mm
Finishes: G (hot dip galvanised)/ D (deep galvanised)/ PG (pre-galvanised)/ S (stainless steel)/ E (powder coated)
XRF – EXTRA HEAVY DUTY
Tray depth: 80mm
Finishes: G (hot dip galvanised)/ D (deep galvanised)/ S (stainless steel)
For further enquiries for project, please contact us.
