Battery-Powered Crimping Tools
Klauke Cable Crimping Tool Supplier In Malaysia
IEP-Emerson Klauke’s are the market leaders for battery-powered hydraulic cable crimping tools for plumbing, heating and ventilation industries and are at the forefront of the crimped connection sector. No matter whether for the cutting, crimping or punching segment we offer a wide selection from a single source range of quality cable connecting products and market leading tooling.

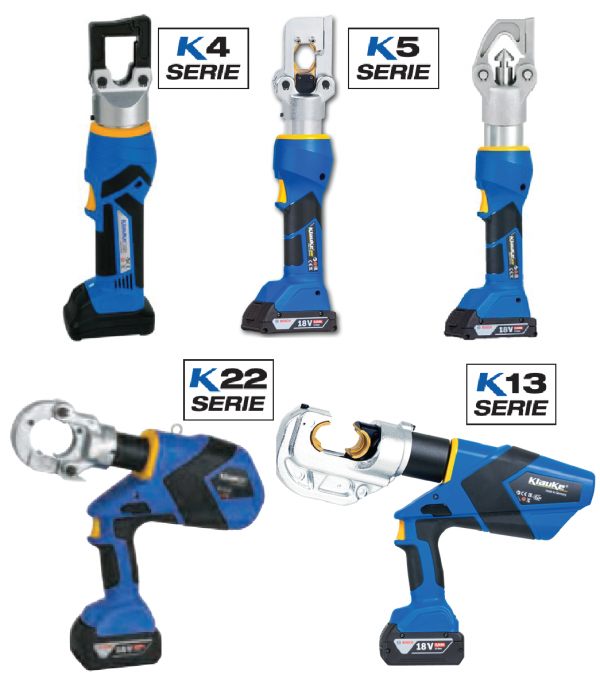

IEP-Emerson Klauke Crimping Tool

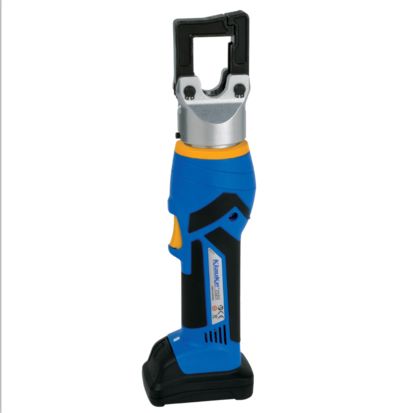

K4 Series – EK354
This battery powered crimping tool has a large cross section range from 6 to 150mm². Its got a slim crimping head, flip top style, rotatable, ideal when space is critical. Suitable for crimping standard and heavy duty CTT-Copper tube terminals from 6 – 150mm2. Lightweight with one-button effortless operating concept for convenient one-hand operation. Ergonomics design for convenient one-hand operation.
Key Characteristics:
• For interchangeable dies, series 4, narrow crimping
• Slim crimping head
• Automatic retraction when crimping is complete
• Blue tooth for readout of data
• 18 V/2.0 Ah Li-Ion battery
• Crimping force: 35 kN

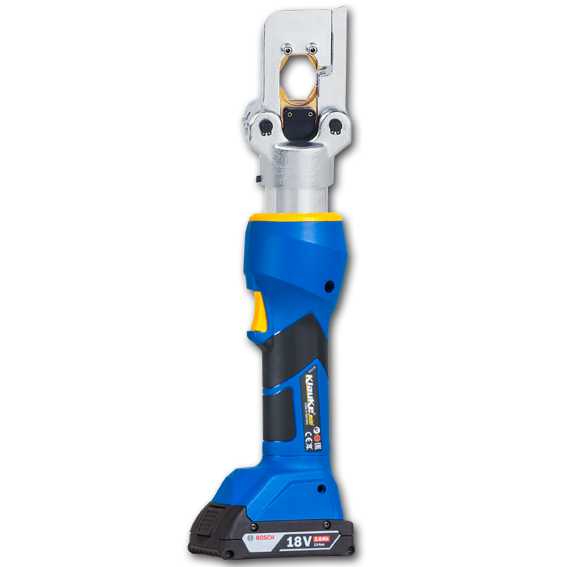

K5 Series – EK505
The Klauke EK505CFB mini is a lightweight 18v battery-powered hydraulic crimping tool with a crimp range of 6 – 240 mm².
Features:
• For crimping dies series 5
• Intelligent Pressing System “IPS”
• Display for tool data
• 18 V/2.0 Ah Li-Ion battery
• Crimping force: 50 kN
K22 Series – EK6022
• For crimping dies series 22
• Two stage hydraulics
• Intelligent Pressing System „IPS“
• Display for tool data
• 18 V/5 Ah Li-Ion battery
• Crimping force: 60 kN
K13 Series – EK12042
• For crimping dies series 13
• C-head with 42 mm opening width
• Intelligent Pressing System „IPS“
• Automatic retraction stop (ARS)
• 18 V/5 Ah Li-Ion battery
• Crimping force: 120 kN, wide crimping

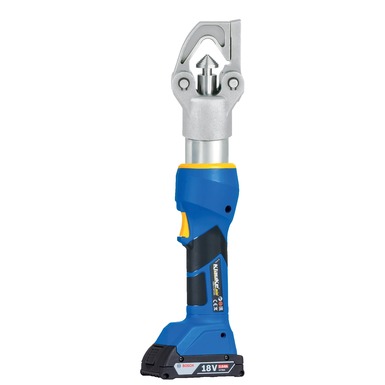

EKM60ID – 10 – 240 mm2
Very well suited for compacted conductors. Especially for fine strand conductors according to DIN VDE 60228
• With 2-stage telescopic cylinder
• No dies required
• Intelligent Pressing System „IPS“
• 18 V/2.0 Ah Li-Ion battery
• Crimping force: 30-60 kN
